01.
VERSATILE REMOTE HEAD

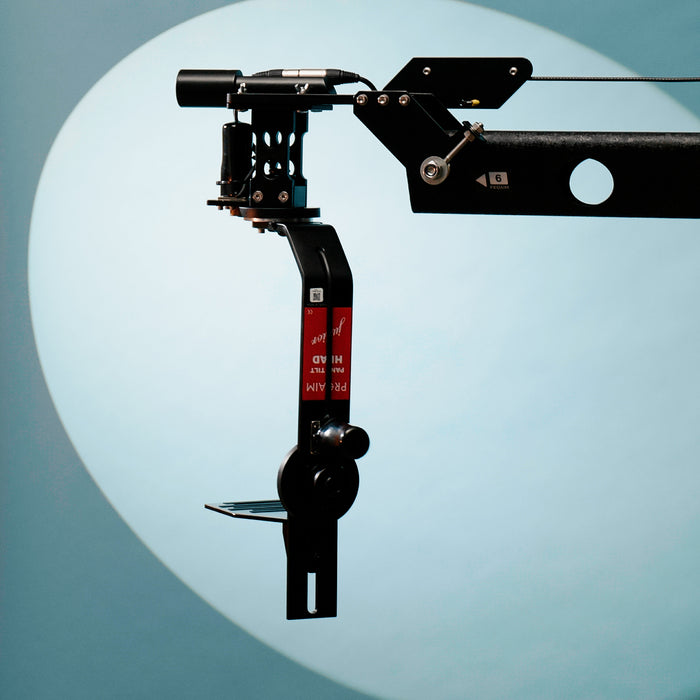

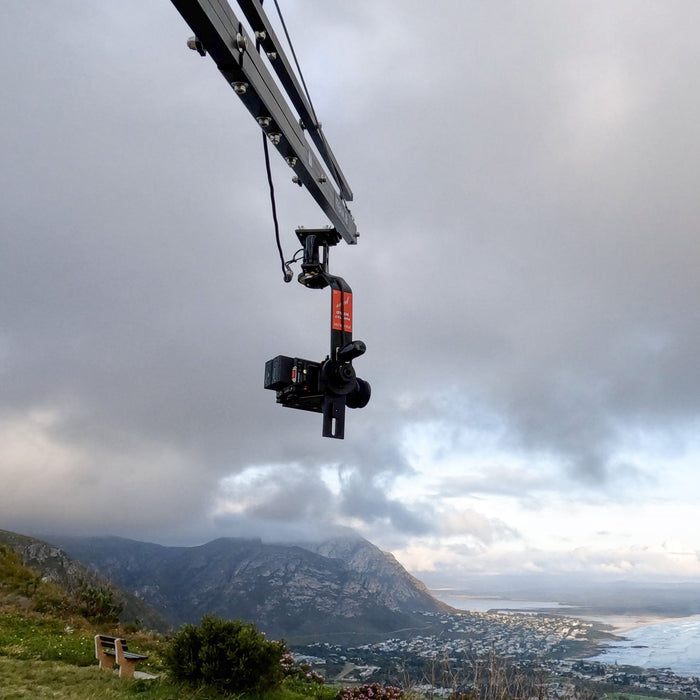

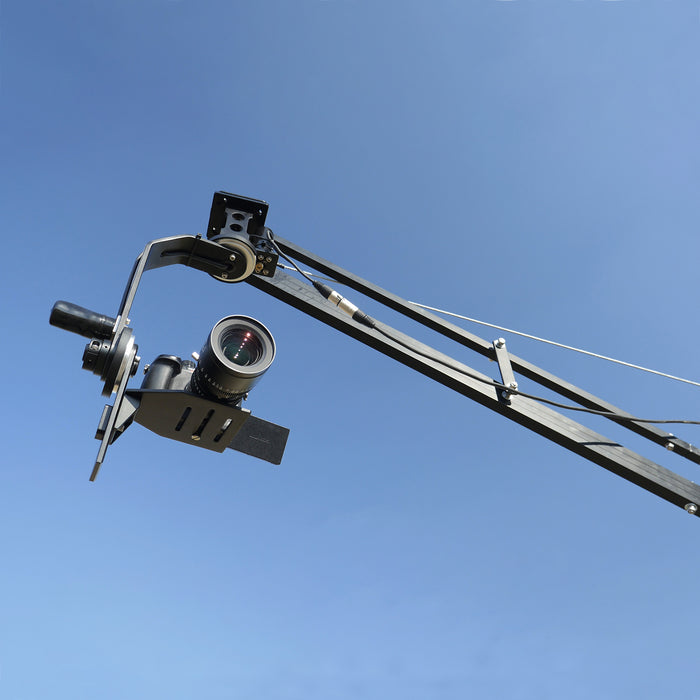

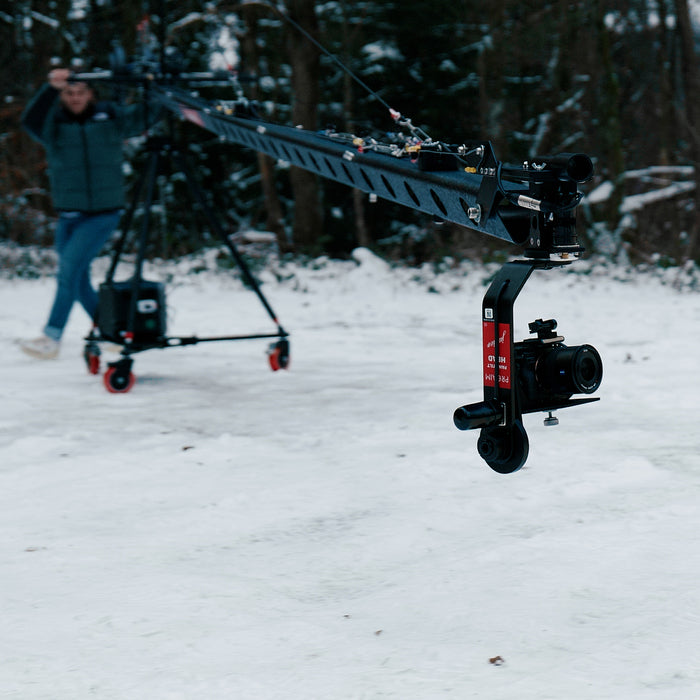

The Proaim Jr. Pan-Tilt Head with Joystick Control remotely controls your Camera when it's mounted on a tripod, jib or crane.
The Jr. Pan-Tilt Runs conveniently on 12 VDC from either a battery pack or the included AC power supply.
No jib is complete without a motorized pan/tilt head, and the Jr. Pan tilt’s robust yet light construction, the universal mounting base and intuitive control box makes it a breeze to set up and operate on virtually any jib.
The universal camera plate is adjustable for different sized setups and can support film and video cameras weighing up to 5kg / 11lb.
The precisely designed Head gives you incredible freedom of movement and gets you cinematic footage virtually anywhere.
SMART REMOTE HEAD GIVES YOU THE FREEDOM
TO BE MORE CREATIVE
02.
HIGH PERFORMANCE WITH ADVANCED FEATURES

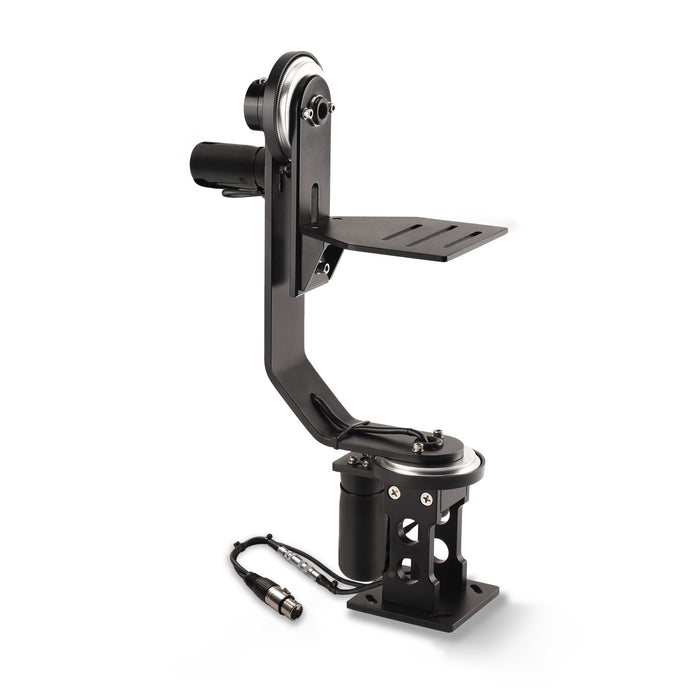

Professionally designed 2-Axis Jr. Pan-Tilt Head ensures a perfect camera balance and offers smooth camerawork at all times.

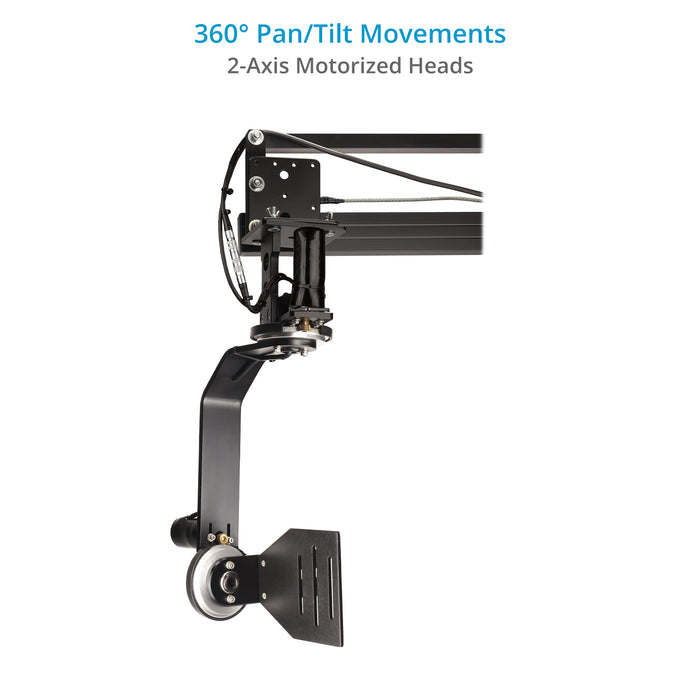

It can be mounted vertically or underslung. The Head will pan and tilt through 360°, and this enables the camera to point directly upwards or downwards when required.
The head has variable pan and tilt speeds, with a minimum speed of 6° per second for slow and smooth pans and tilts. For faster, yet smooth pan and tilts, the head has a maximum pan/tilt speed of 51° per second.

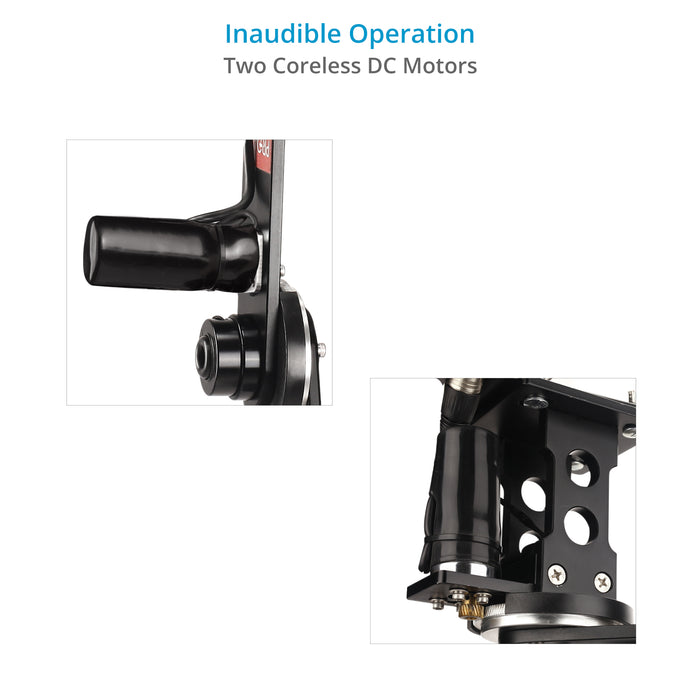

Two high-quality coreless motors and backlash-free gears work precisely, quietly and dynamically. The motor drive can be easily disengaged to balance the Camera on the camera plate.
The high strength brass gears are engineered to withstand long hours of functions and have minimal wear and tear.
03.
EASY OPERATION
Damping Control :- Damping control knob prevent the Head from stopping abruptly with a jerk, giving you smooth endings. The amount of damping is increased by rotating the damping knob clockwise.
Dead Spot Control :- The Dead spot control determines the centre band of the joystick where no motion will occur and ensure no crossover to the other axis when not wanted. you can adjust your joystick when it is not centre by rotating this knob clockwise. If you observe the head moving without deflecting the joystick, it will be necessary to adjust centring. and to perform best in reversing the head then dead spot knob should be 30 to 40 percent.
Pan/Tilt Direction :- You can reverse the panning & tilting direction as & when required by using switch and you can also take damping function at the time of reversal. So best way to reverse the pan tilt head is by using this Reversal switch.
04.
BUILT TO LAST
Precision CNC machining, rigorous parts inspection, and thorough individual unit testing ensure A-grade quality, which serves for the lifetime.
Technological advancements make the unit light, smooth and easy to operate.

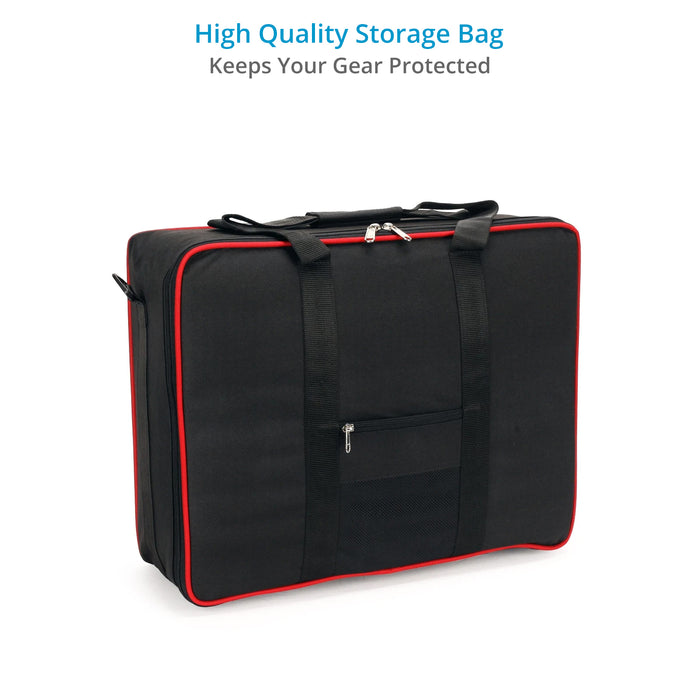

The high-quality carrying bag with custom-fit foam protects the Pan-Tilt Head for storage and transport via air or land.

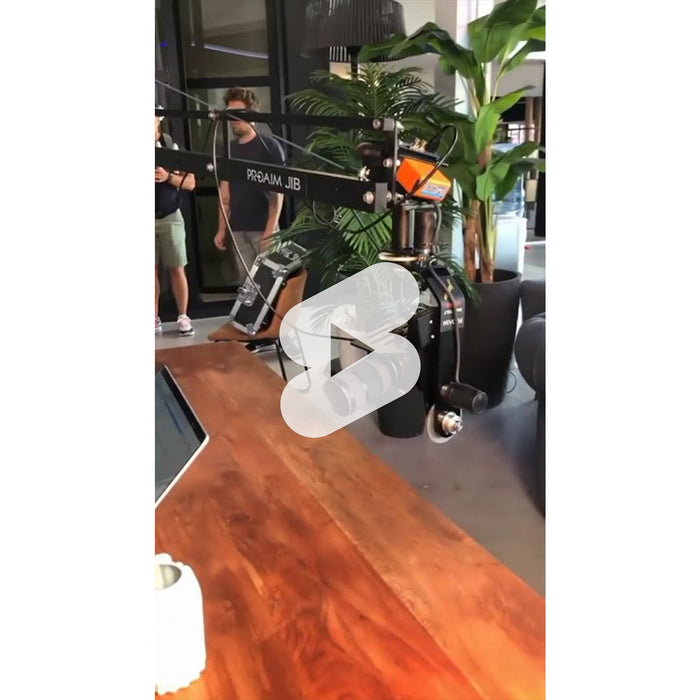

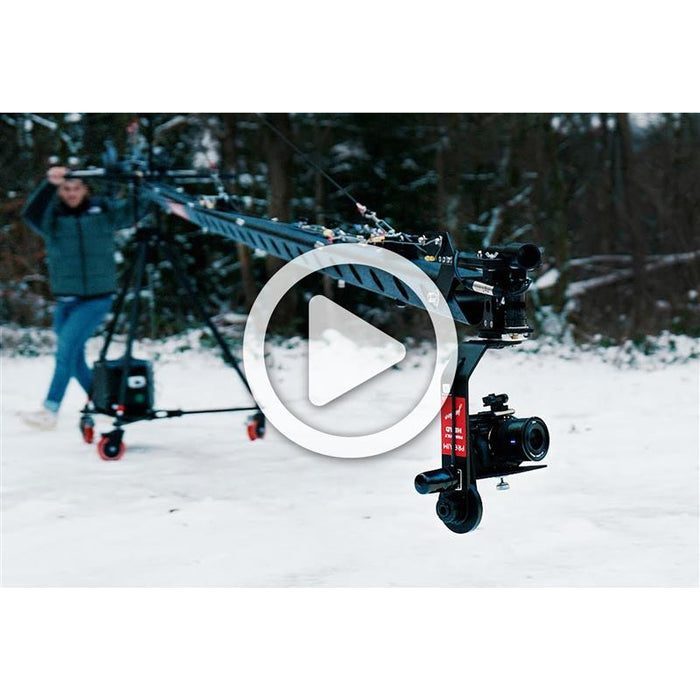

IN-ACTION VIDEOS
SPECIFICATIONS

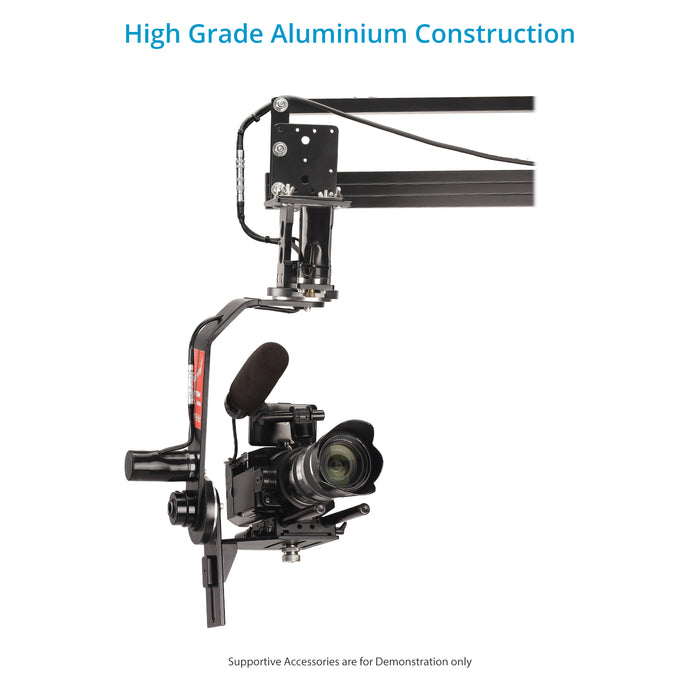

Made of Construction
High-grade CNC Aluminum
Load Capacity
5kg / 11lb
Pan & tilt
Movement: 360°
Speed
Minimum: 6°/sec Maximum: 51°/sec
Covers 360° at Slowest Speed in : 2 minutes
Covers 360° at Highest Speed in : 7 seconds
Motors
Two high torque, coreless DC motors that rotate the Head 360° (Pan/Tilt)

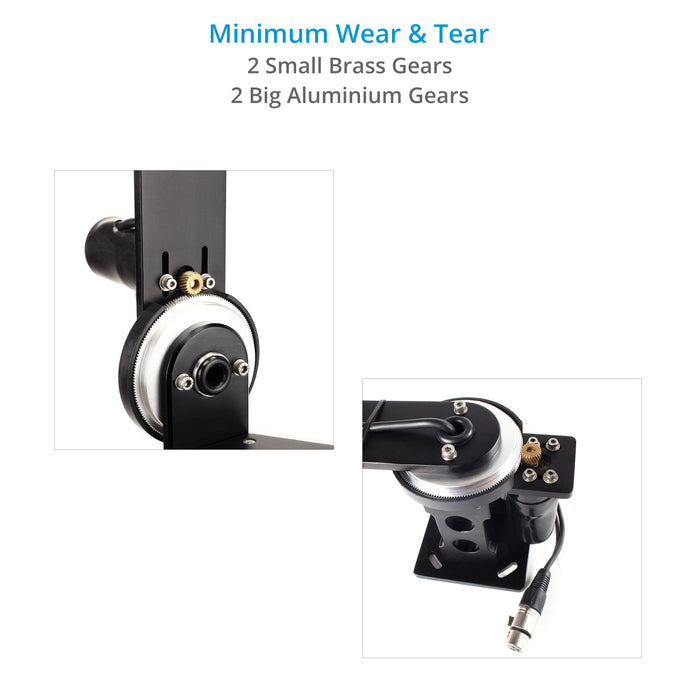

Gears
2 Small: ⌀ 13.5mm (Brass)
2 Large: ⌀ 88mm (Aluminum)
Adjustments
Minimum Height of Head: 18.5" / 46.99 cm
Maximum Height of Head: 26" / 66 cm

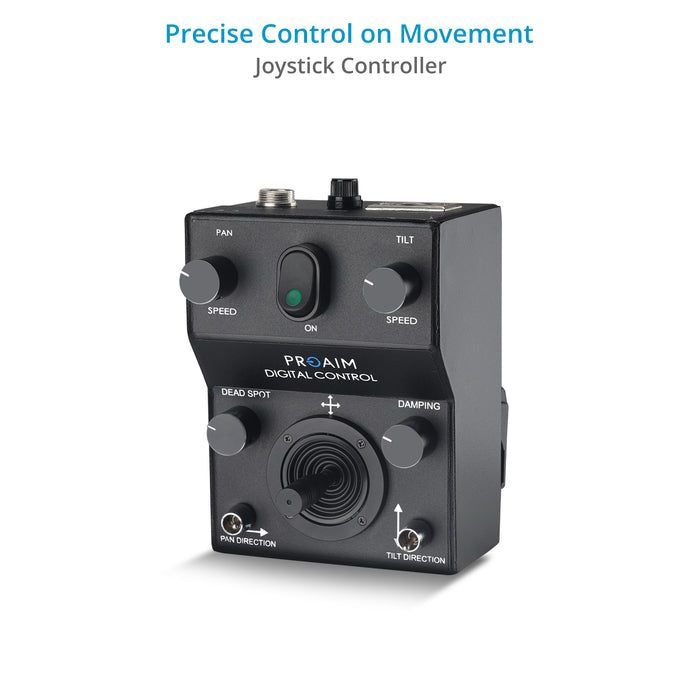

JOYSTICK CONTROLLER
Axis: 2
Connectors: 2x 4-Pin XLR Male Connectors
Pan/Tilt Direction: Yes
Upgraded with: Damping Knob
AC Adapter input
AC 100-240V ; Output 12V DC-2A
Cables
Cable Length: 15 meter (Can be extended up to 50 meter)
Cable Connector: 4-Pin XLR
Battery Cable: 3 meter Long
Weight
Pan/Tilt Head: 2.7 kg / 5.9 lb
Joystick: 800 gram / 28.22 oz
Bag Dimensions: 50 x 35 x 19 cm
PACKAGING INFO
Package Weight
6.90 kg / 15.21 lb
Box Dimensions (LxWxH)
21.25 x 13 x 7.4" / 54 x 33 x 19 cm

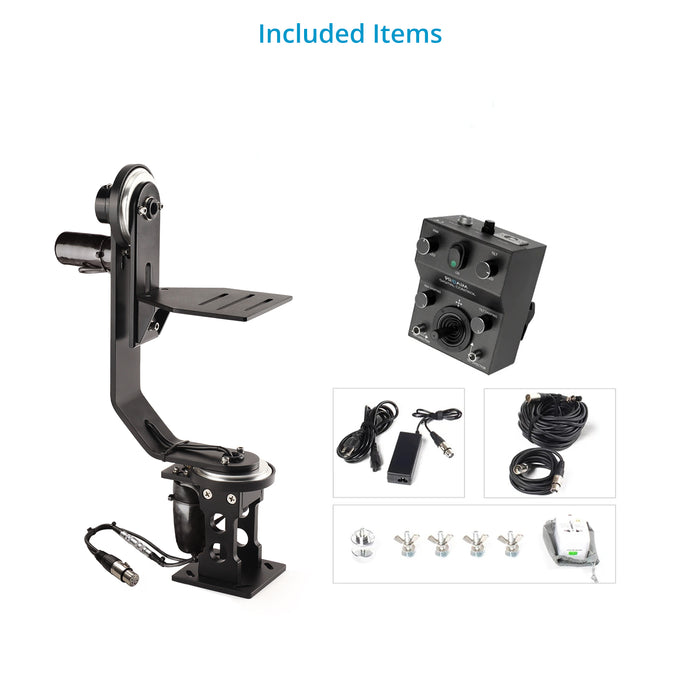

IN THE BOX
Proaim Jr. Pan Tilt Camera Motorized Head
Joystick Controller
12volt AC Adapter
15meter / 49foot long Control Cable
3 Meter long 4pinXLR cable (for using 12VDC Battery Packs)
Universal Adapter
Carrying Case with Custom-Fit Packing
IN THE BOX
WHY JR. PAN-TILT IS THE BEST CHOICE?
Creative Flexibility
It can be used with Jibs, Cranes, Tripods, etc., and holds video, film cameras weighing up to 5 kg / 11 lb.
Minimum Wear and Tear
The high-strength brass gears are engineered to withstand long hours of functions and have minimal wear and tear.
Affordable Price
There is no other product in the market, with these many features even close to this price range. We offer Value for Money!
FAQ
Q: Which cameras it is compatible with?
Ans: The Proaim JR. pan tilt head will fit to cameras weighing upto 6kg.
Q: Will it work with blackmagic pocket camera?
Ans: Yes, it will work with blackmagic pocket camera as it is compatible with cameras weighing upto 6kg.
Q: How long is the distance it will work with?
Ans: It can be operated upto 100ft long distance.
Q: Will it fit to Kessler Pocket Jib?
Ans: The crane mounting plate should be square in shape with four mounting holes at corners in order to be compatible with this head.
Q: Will it fit to EZ FX Jib crane?
Ans: This pan tilt will not be compatible with EZ FX Jib crane as the mounting of pan tilt and jib are different.
Q: Will it mount on truss?
Ans: Yes, this pan tilt head can be mounted on a truss.
Q: How many circle it can complete?
Ans: This pan tilt head can take two complete 360 degree circles.
Q: What is the weight of the head itself?
Ans: It is approx. 2.7kg
Q: What kind of battery I need to operate it?
Ans: You need 12V battery to operate this head. You can buy our 12v power pack for it :
Proaim Power Pack
Q: Do you provide cable for the battery?
Ans: Yes, we provide 3 meter long cable for using with the battery.
Q: What is the gear material?
Ans: Small gears are made of brass and bigger gears are silver.
Q: Does the joystick come with handle to clamp on jib crane?
Ans: Yes, the joystick control box comes with a handle to clamp it on a jib crane.
Q: Which motors are used in this head?
Ans: High Torque DC Motors of 12V are used in this head.
Q: Is the camera plate height adjustable?
Ans: Yes, you can adjust the height of camera plate.
Q: Is it returnable for a full refund if it doesn’t meet my expectations upon delivery?
Ans: Yes, absolutely. We always backup our sales. In case, you don't like the product, we take it back within 30 days and you get a 100% refund.
Q: What is the warranty?
Ans: We provide 1 year warranty from the date of purchase. Items which are covered by the warranty period will be replaced at no cost to the customer. Replacement parts of the product will be provided at nominal cost (covering the cost price of the replacement parts only) to the customers after the Warranty Period has expired.
Guaranteed Fast Delivery |
Quick and Efficient |
Easy Returns |
1-Year Warranty |
Q&A
Ask a Question-
Can the motors run on 18V DC or should I step down out batteries to 12V?
You can use max battery power of 12V.
-
What is the wiring information for the 4 Pin XLR connector
The 4-pin XLR connector is used, in which the 4th number pin is used for DC positive, the 1st number for DC negative, and the 2nd & 3rd numbers remain unused
-
Is this DMX controllable?
No, there is no connection of DMX with the Proaim Jr. pan tilt head.
-
What are the dimensions of PT-JR
"Here are the dimensions Proaim Jr. Pan Tilt Head PT-JR: https://prnt.sc/fM_LFwh0wXvt "
