Proaim 14ft Camera Crane Jib, Stand, Jr. Pan-Tilt | Gimbal Compatible

For DSLR Video Cameras Camcorders

Save 7% Save 7%
Original price £943.75
Original price £943.75 - Original price £943.75
Original price £943.75
Current price £877.46
£877.46 - £877.46
Current price £877.46
SKU : P-14-JS-JRPP



USER-FRIENDLY & AFFORDABLE JIB FOR INDOOR/OUTDOOR USE

High Build Quality. Simple yet Powerful.

01.

PROFESSIONAL. STRONG. LIGHT. SMOOTH.

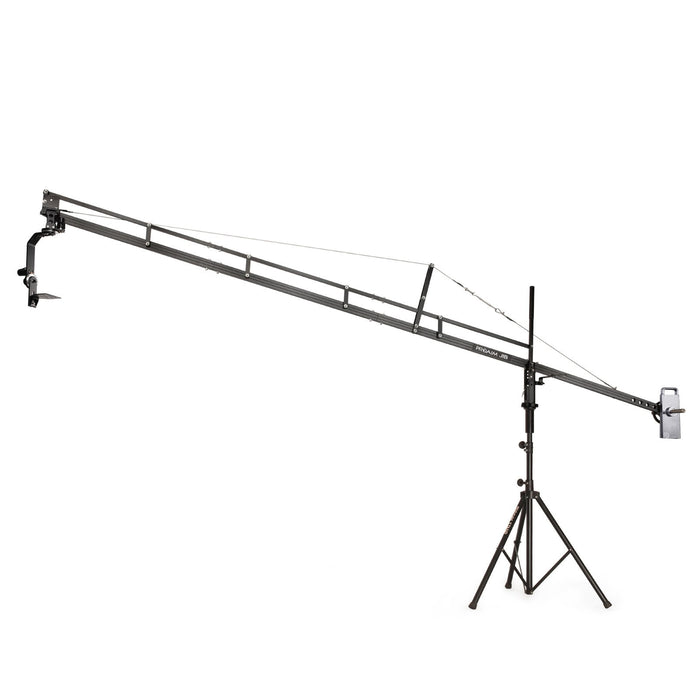

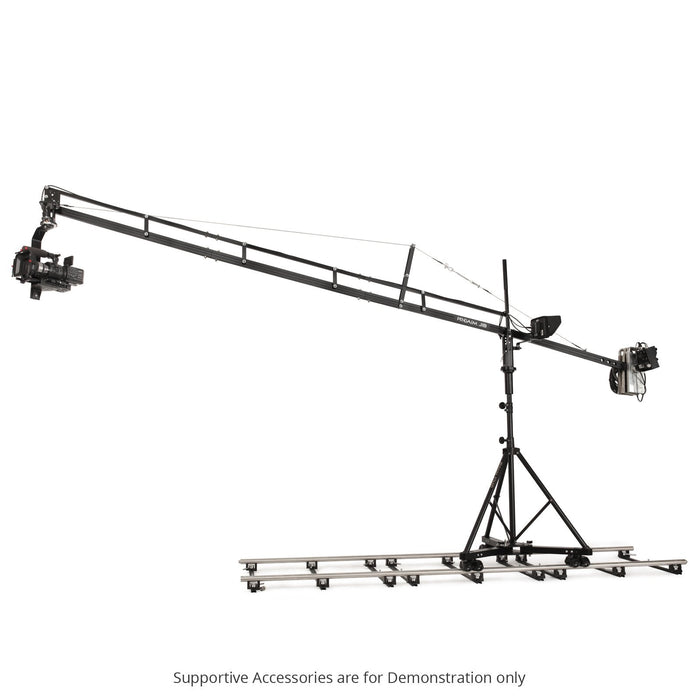

Proaim 14ft Camera Jib Arm is designed for videographers and filmmakers who need a lightweight and ultra-portable Crane system.

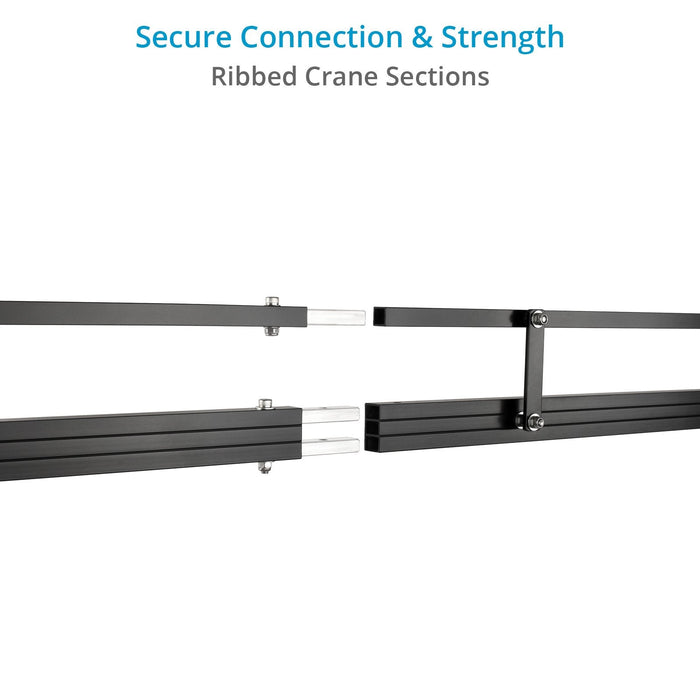

The Jib has many great features such as a two-arm design, camera mount tilt control, ribbed jib sections & monitor mounting - making it one of the most value for money jib.
It allows capturing smooth, dynamic sweeping pans and camera rise.
High strength Aluminum construction with unbeatable stability holds camera setups up to 8kg / 17.6lb.

02.

EXPERTLY CRAFTED JIB

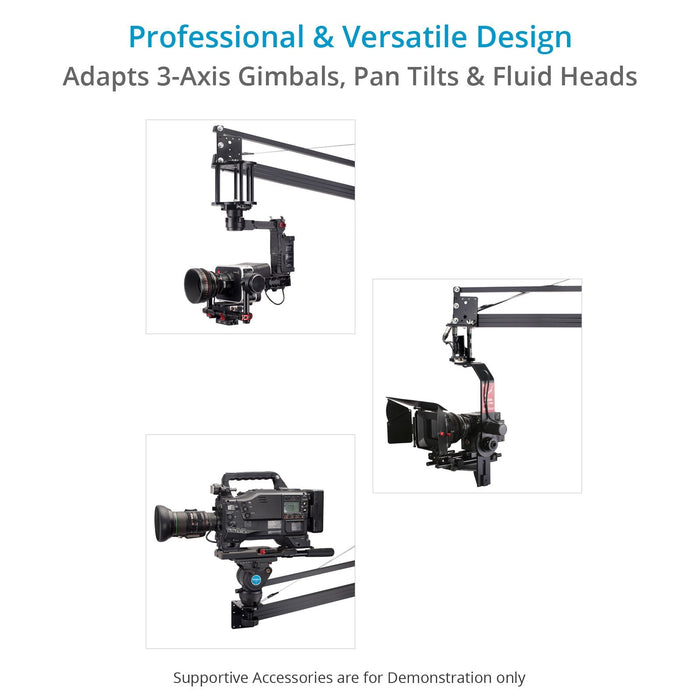

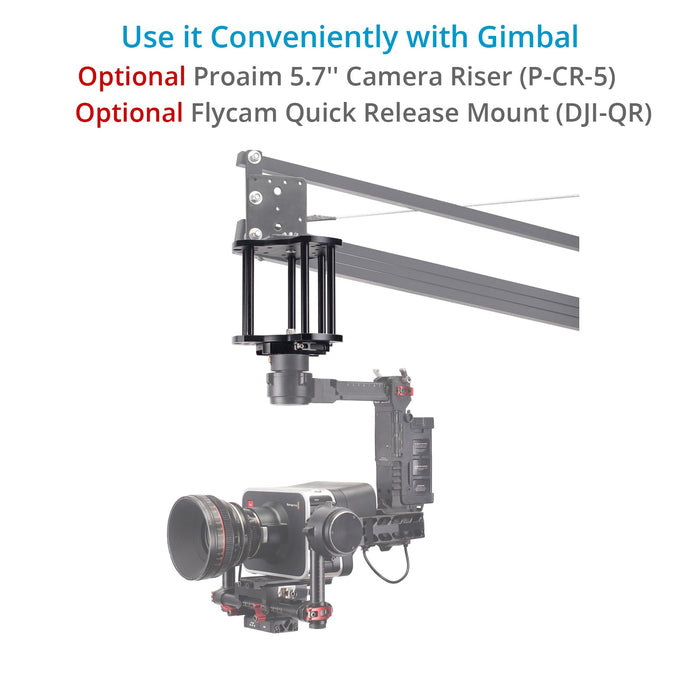

The Jib has Universal front mounting to adapt Pan Tilt Heads and 3-Axis Gimbal Stabilizers.
Two Arm Design offers enhanced strength & stability to the entire jib setup.
The Jib comes with a 1/4"-20 hole allowing for Quick LCD monitor attachment.
Camera Mount Tilt Control offers both Auto tilt mode and a Manual tilt mode with a control handle.

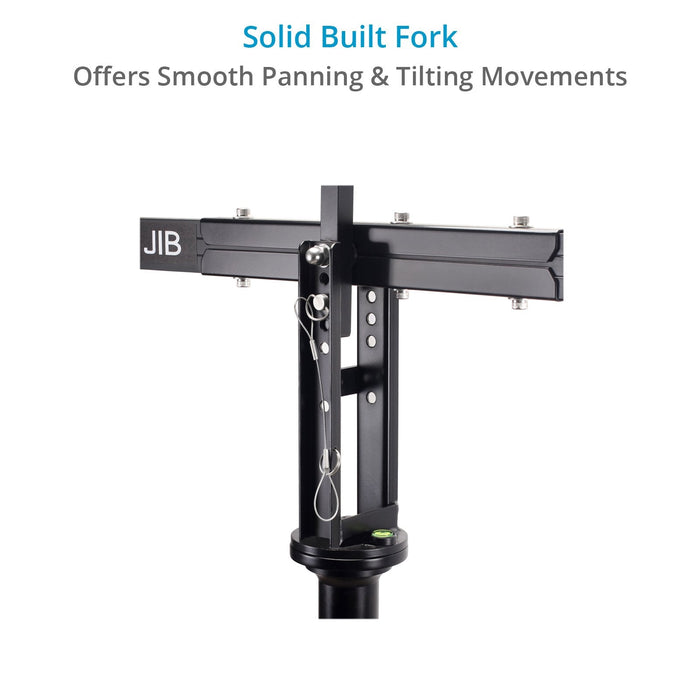

Central Fork with thrust roller bearings absorbs shock loads for smooth jerk free jib movements.
Hi-tensile weight closers keep the weight discs intact for perfect balance.

03.

MOST AFFORDABLE JIB SOLUTION
For rigs under 8kg / 17.6lb, there isn't a better crane for the money. Filmmakers often have to sacrifice quality for quantity when building their gear; the Proaim 14ft Jib eliminates that concern by providing an excellent jib solution at an economical price.

04.

SOLID FOUNDATION FOR THE JIB

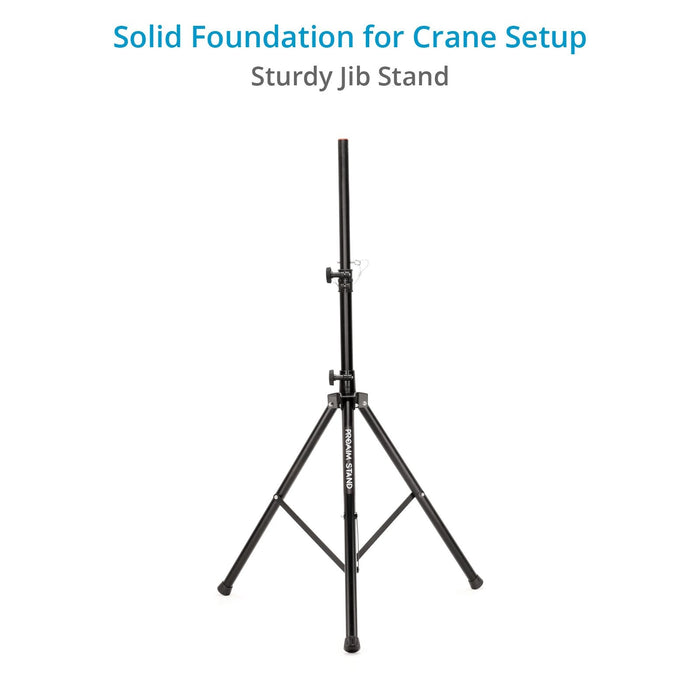

This excellent Jib Stand is sturdy enough to support the Crane when it's fully loaded and weighed.
It combines high-quality materials, technological expertise and superior design to provide ideal support needed to take the perfect shots.
The Jib Stand supports an incredible payload of up to 90kg / 200lb and is highly stable in use.

05.

ENHANCE YOUR CREATIVE VISION

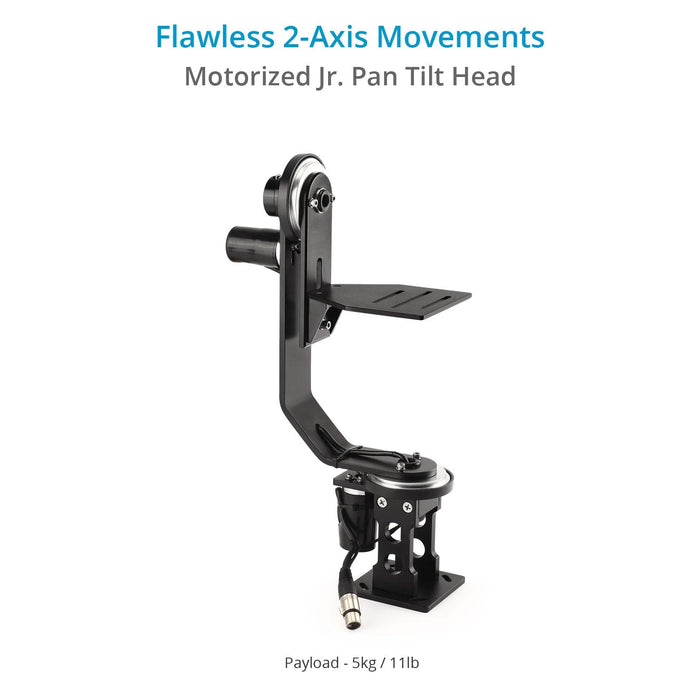

Proaim Jr. Pan tilt offers complete 360-degree pan & tilt inaudible movements while keeping your camera safe and secure. It is engineered to support cameras up to 5kg / 11lb with ease. Creative flexibility is a built-in feature as the Pan Tilt head can be used with jib crane arms, tripods and in other remote operating situations that dictate increased production value. Incredibly accurate and easily controllable, Proaim Jr. Pan tilt is a user-friendly Controller System.

06.

PAN TILT FEATURES

Two Coreless Motors
Two coreless high torque motors provide inaudible movements along with a payload capacity of 5kg / 11lb, which is substantially higher than its counterparts.

Brass Gears
The high strength brass gears are engineered to withstand long hours of functions and minimal wear and tear.

07.

EASY OPERATION

Speed Controller - Adjusts the speed of pan & tilt based on the requirement of the shot.

Damping Control - Prevents the head from stopping with a jerk enabling you to achieve smooth endings.

Dead Spot - Controls sensitivity of joystick on pan tilt head & prevents unwanted movements.

Pan-Tilt Direction - You can reverse the panning & tilting direction as & when required.

08.

SIMPLIFIED TRANSPORT

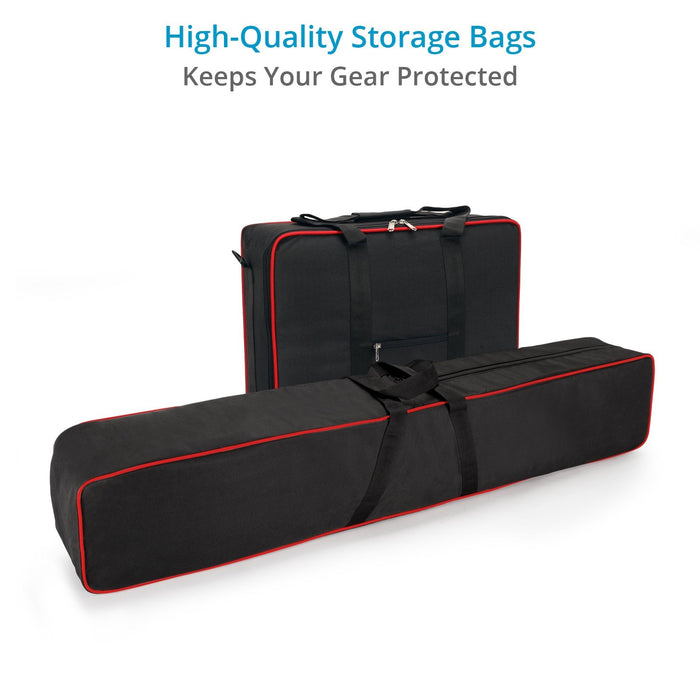

The Complete Crane System fits in bags for easy storage. These compact bags are easy to carry with you to different sets and locations.

IN-ACTION VIDEOS

SPECIFICATIONS

14' JIB

Construction

  Jib Arm: High-grade CNC Aluminum

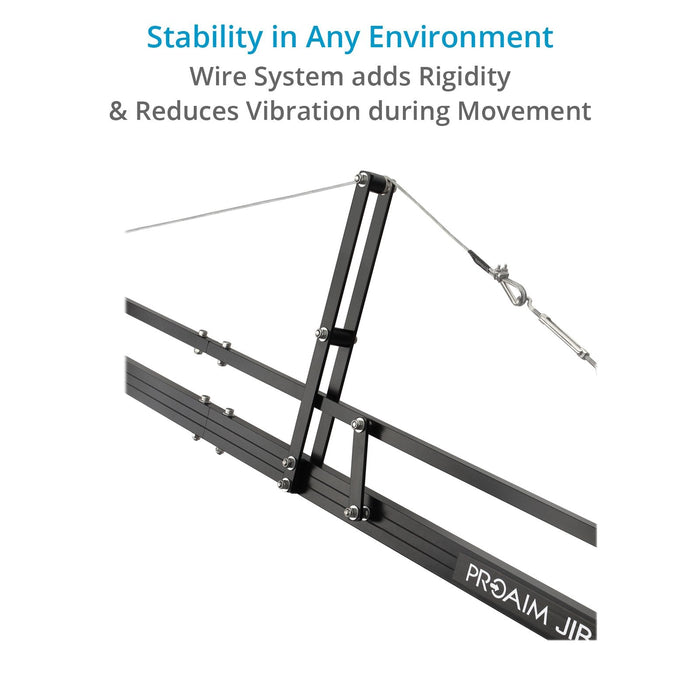

  Cable System: Stainless Steel
  Weight Holder Rod: Mild Steel
  Weight Closures: Mild Steel

Load Capacity

  up to 8kg / 17.6lb

Balancing

  The jib has a varying weight ratio depending on the length you have chosen.

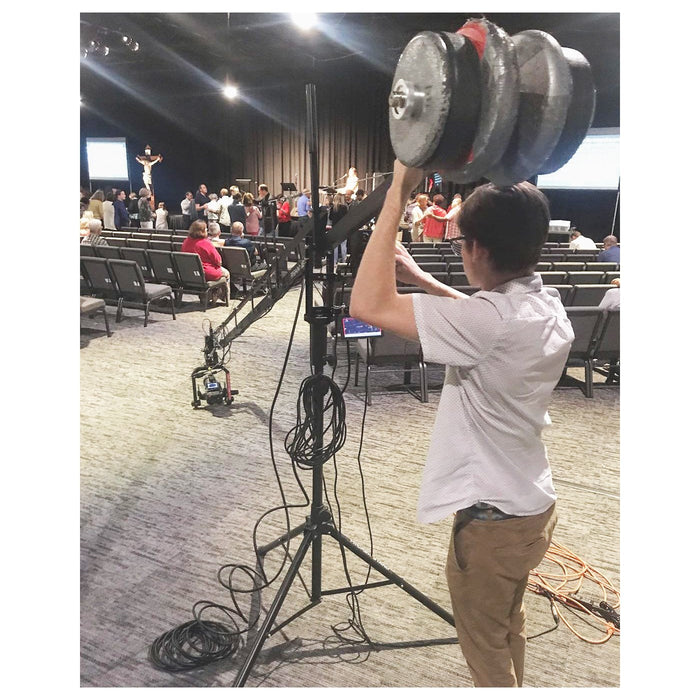

  The 14 jib arm itself balances at about11kg. Just multiply the weight, of the additional items you will put on the end of the arm, by 2 and you will know how much weight to buy.
  Buy a few extras in case you add other accessories.

Variable Lengths

14ft & 10ft

Jib Length

  Height Range from ground level: 15ft. when stand height adjusted at 5ft
  Length from tripod to Camera Mount: 10.3ft

Jib Arm

  Shape: Rectangle
  No. of Sections: 4
  Length: 3.5' each
  Jib Section Jointers: Silver Aluminum

Tilt Lock

  No

Pan Lock

  No

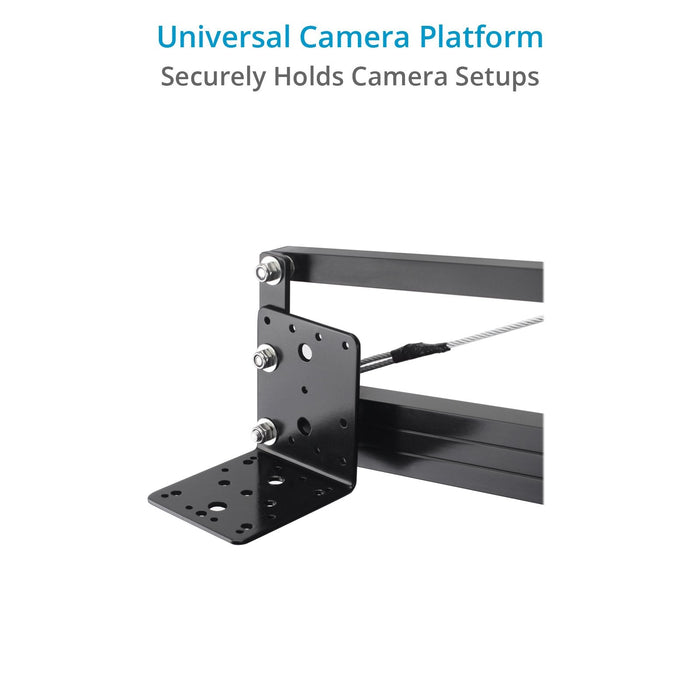

Camera Platform

  Camera Mount Plate: Rectangle (10.5 x 9cm)
  Levelling: By Stress Cable (with Adjustable Steel Hook)

Camera Platform Tilt

  up to 270 degree

Weight Holder Rod

  Length: 355mm
  Diameter: 25mm
  Weight Closures: 2 pieces

LCD Mounting

  Yes

Weight

  16 kg / 35 lb

JUNIOR PAN TILT HEAD

Construction

  High-grade CNC Aluminum

Load Capacity

  5 kg / 11 lb

Pan Tilt Movement

  360°

Motors

  Two high torque, coreless DC motors that rotate the Head 360° (Pan/Tilt)

Speed

  Minimum: 6°/sec Maximum: 51°/sec
  It Covers 360° at Slowest Speed in 2 minutes
  It Covers 360° at Highest Speed in 7 seconds

Gears

  2 Small: 13.5mm (Brass)
  2 Large: 88mm (Aluminum)

Height Adjustment

  Minimum Height: 18.5" / 46.99cm
  Maximum Height: 22" / 56cm

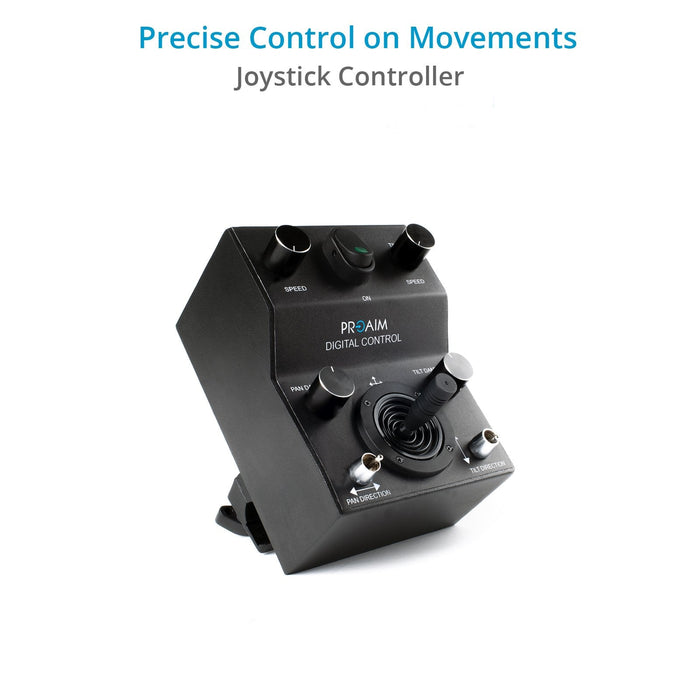

Joystick Controller

  Axis: 2
  Connectors: 2x 4-Pin XLR Male Connectors
  Pan/Tilt Direction: Yes
  Upgraded with: Damping Knob

AC Adapter Input

  AC 100-240V ; Output 12V DC-2A

Cables

  Cable Length: 15 meters (Can be extended up to 50 meters)
  Cable Connector: 4-Pin XLR
  Battery Cable: 3 meters Long

Weight

  2.7kg / 5.9lb

JIB STAND

Construction

  High-grade Mild Steel, Powder-coated

Load Capacity

  up to 90kg / 198lb

Length

  Maximum: 80"
  Minimum: 44"

Collapsible Height

  46"

Diameter of Stand Tubes

  33mm

Base Spread

  32"- 48"

Safety Pin

  Yes

Weight

  4.5kg / 10lb

IN THE BOX

Proaim 14ft Video DSLR Camera Jib (P-14)
LCD Monitor Arm
Proaim Jib Stand (P-JS)
Proaim Jr. Pan Tilt Head with Joystick Box (PT-JR)
Universal Adapter
AC Adapter
Cable with Connector
Storage Bag


delivery

Guaranteed Fast Delivery
For all orders

customer service

Quick and Efficient
Customer service

easy returns

Easy Returns
Up to 30 days

warranty

1-Year Warranty
On All Products


Customer Reviews
5.0 Based on 1 Reviews
5 ?
100%
1
4 ?
0%
0
3 ?
0%
0
2 ?
0%
0
1 ?
0%
0
Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
JE
15/03/2017
Jorly E.

Five Stars

This is the perfect crane I was hoping for and it made my day, thank you for your service!




  • Can the motors run on 18V DC or should I step down out batteries to 12V?

    You can use max battery power of 12V.

  • What is the wiring information for the 4 Pin XLR connector

    The 4-pin XLR connector is used, in which the 4th number pin is used for DC positive, the 1st number for DC negative, and the 2nd & 3rd numbers remain unused

  • Is this DMX controllable?

    No, there is no connection of DMX with the Proaim Jr. pan tilt head.

  • What are the dimensions of PT-JR

    "Here are the dimensions Proaim Jr. Pan Tilt Head PT-JR: https://prnt.sc/fM_LFwh0wXvt "

  • What is the thickness of the wall.

    The thickness of the wall of the Proaim 14ft Camera Crane Jib Arm is 2mm.
